Check Valve

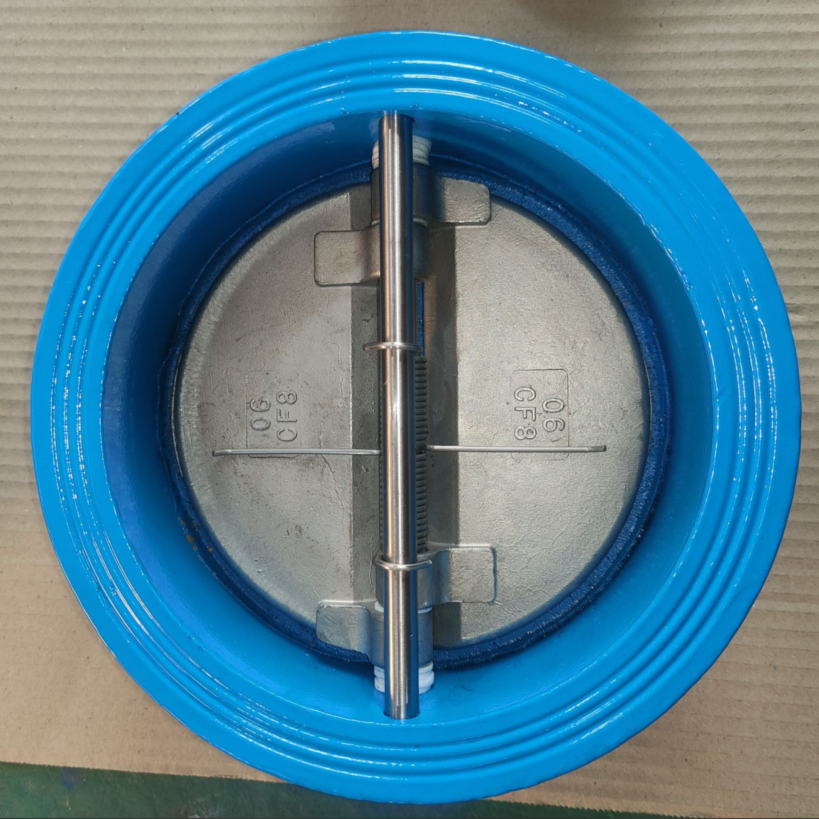

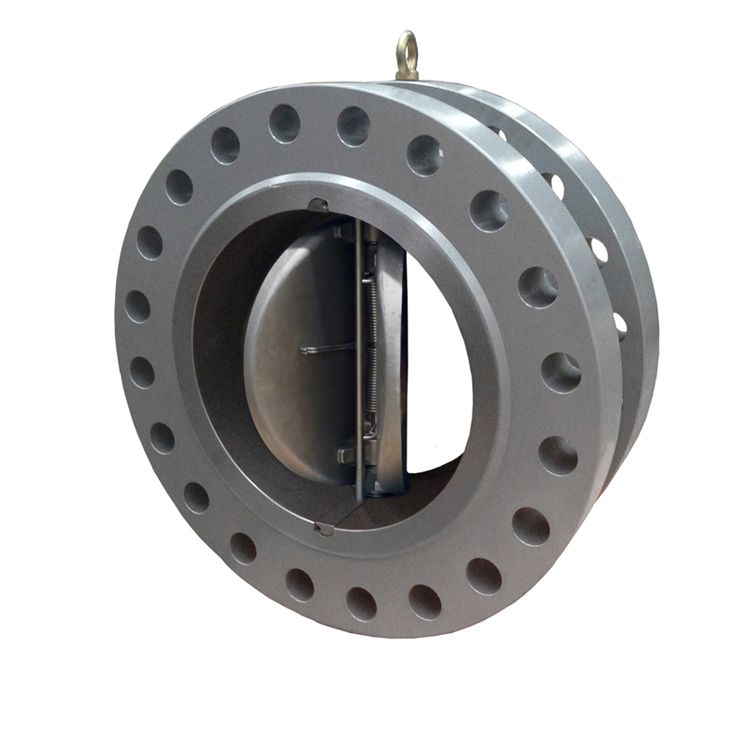

DIN Double Disc WCB Flange Type Check Valve

    1. Design and manufacture:API 594
    2. Flange dimensions:ASME B16.1/EN1092.
    3. Test and inspection:API 598/EN12266.
    4. Size up to 60”

  • FEEDBACK

Specifications:

Size: DN50-DN1500

Pressure: PN10/16, Class150,JIS6K/10K

------------------------------------------------------------------------------------------

Materials:

Body : WCB

Disc: SS304

Seal : EPDM

Stem : SS410

------------------------------------------------------------------------------------------

Applicable medium:Water, Oil, Gas

------------------------------------------------------------------------------------------

The check valve is a valve that automatically opens and closes the valve disc by the flow of the medium itself to prevent the medium from flowing back.

It is also called a non-return valve, a one-way valve, a reverse flow valve, and a back pressure valve.

A check valve is an automatic valve. Its main function is to prevent the medium from flowing back, to prevent the pump and the drive motor from reversing, and to release the container medium.

The check valve can also be used on the pipeline that provides supply to the auxiliary system where the pressure may rise to exceed the system pressure.

Check valves can be mainly divided into swing check valves (rotating according to the center of gravity) and lift check valves (moving along the axis).


Product name

Check Valve

1)Material

Cast Iron/WCB/SS304/SS316

2)Size

DN50-DN1500

3)Certificate

ISO9001:2008 CE,WRAS.ACS

4)Working pressure

PN16/PN25/PN40/150LB/300LB

5)Connection Ends

Wafer/Flange/Lug

6)Suitable medium

Water, gas, air and some corrosive liquid

7)Temperature Range

-20-300 degree C

8)Sealing

Metal Seat(304/316)/Soft Seal(NBR/EPDM)


Features:
1. Small compact, easy in maintenance
2. Quick-close action
3. Easy instalation, it can be installed on horizontal and vertical both directions pipes
4. The valve is tightly sealed, no leakage
5. Safe and reliable in operation, high interference-resistance

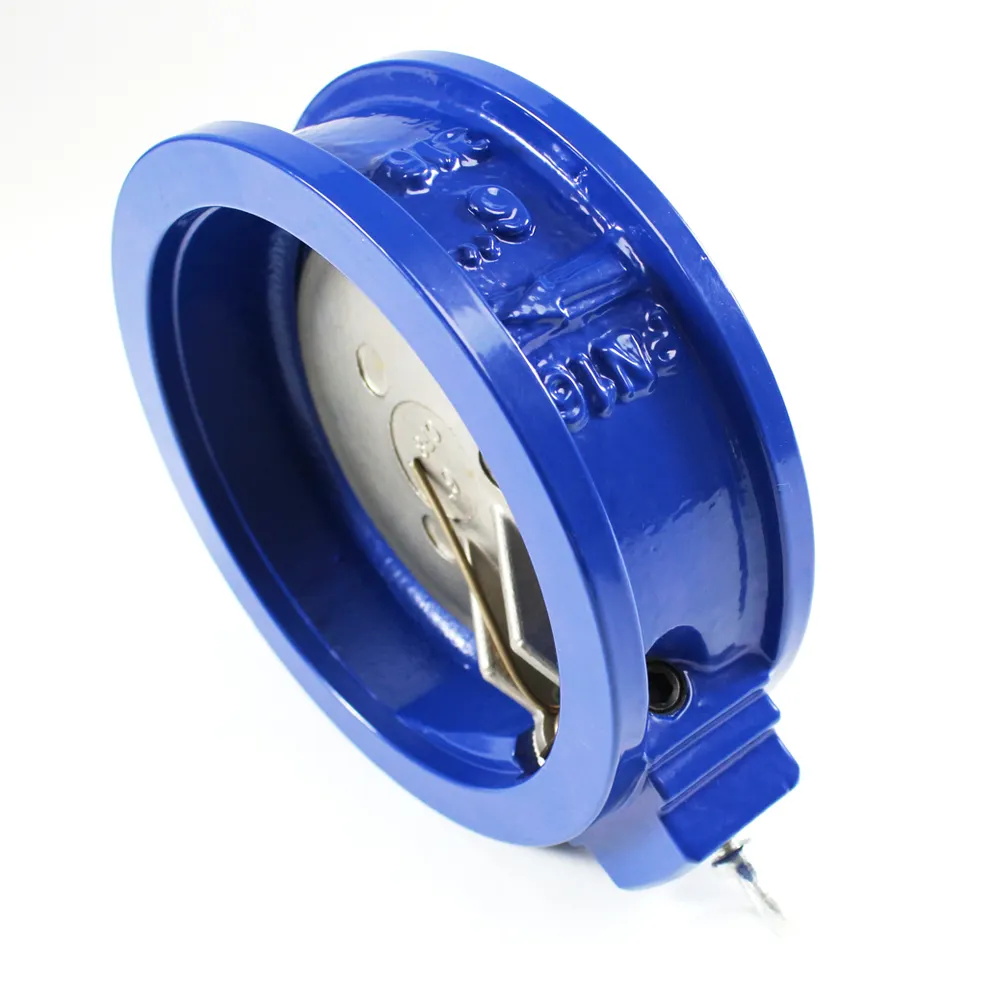

Previous:Wafer type single disc swing check valve Next:no more
