Check Valve

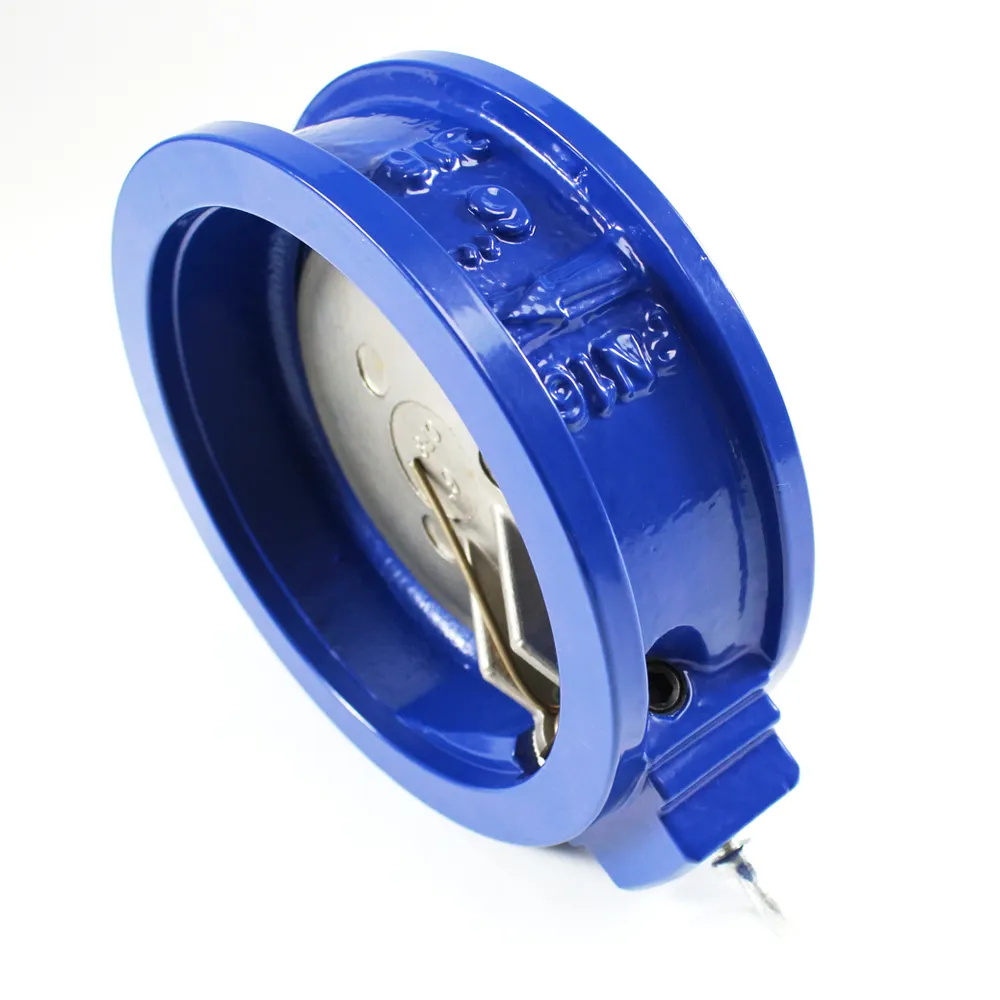

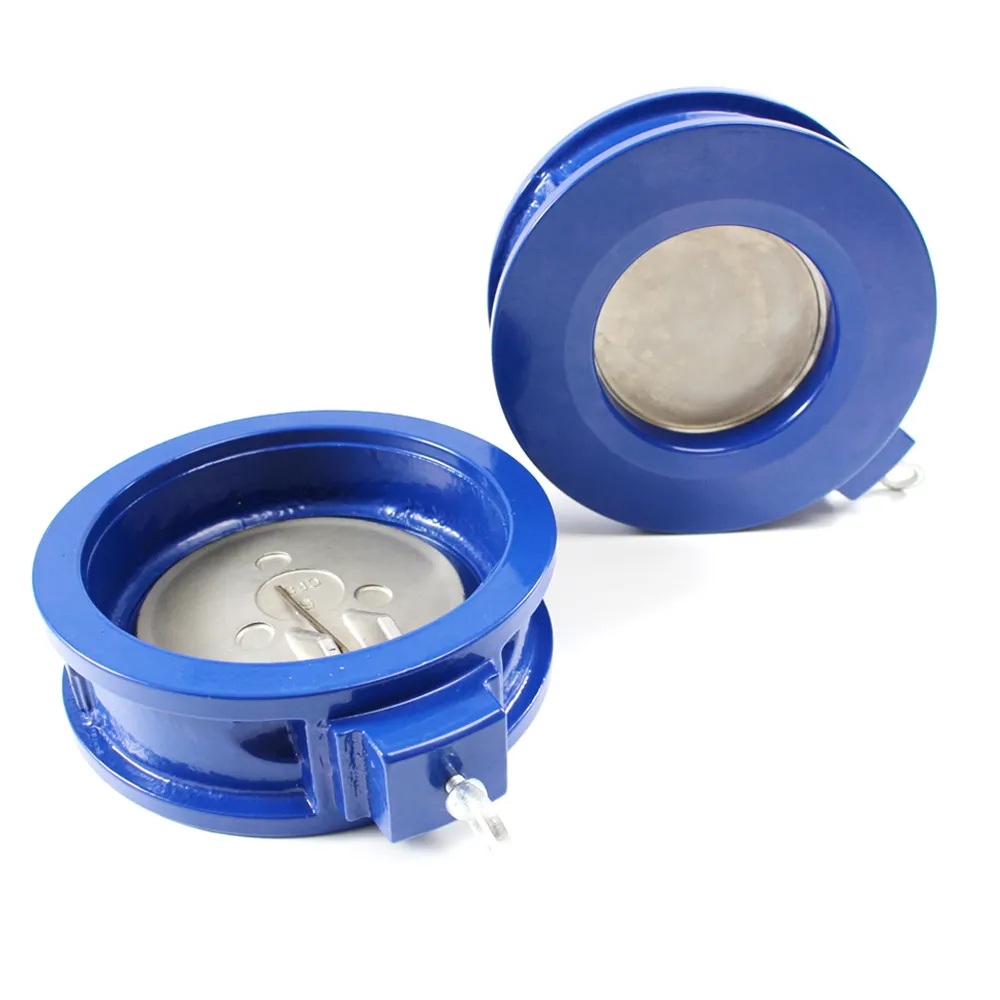

Wafer type single disc swing check valve

    1. Design and manufacture: API 594.
    2. Flange dimensions: ASME B16.1/EN 1092.
    3. Test and inspection: API 598/EN12266.
    4. Size up to 24".


  • FEEDBACK

Wafer type single disc swing check valve

Working pressure:1.0/1.6/2.5Mpa

Working temperature:NBR:0°~80° EPDM:-10°~120° VITON:-20°~180°

Face to Face:ANSI125/150

Medium:Fresh Water,sea water,food stuff,all kinds of oil,acid,alkaline liquid etc.

body

GG25/GG40/SS304/SS316

Ring

steel

Shaft

SS316/SS304

Spring

Stainless steel

Gasket

PTFE

Disc

WCB/ss316/ss304

seat ring

NBR/EPDM/VITON

gasket

NBR

Screw

Steel
