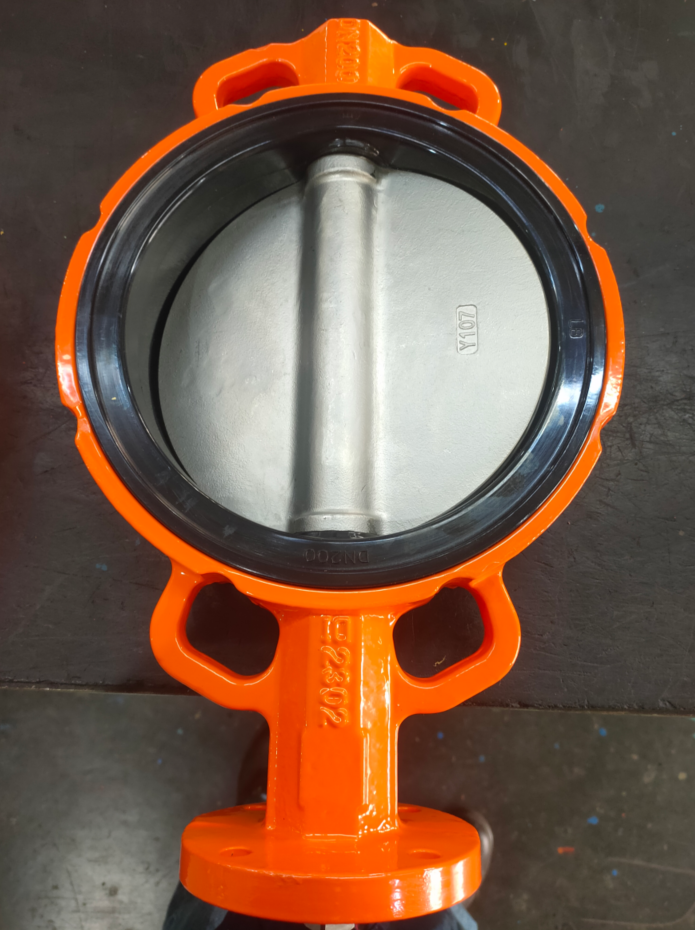

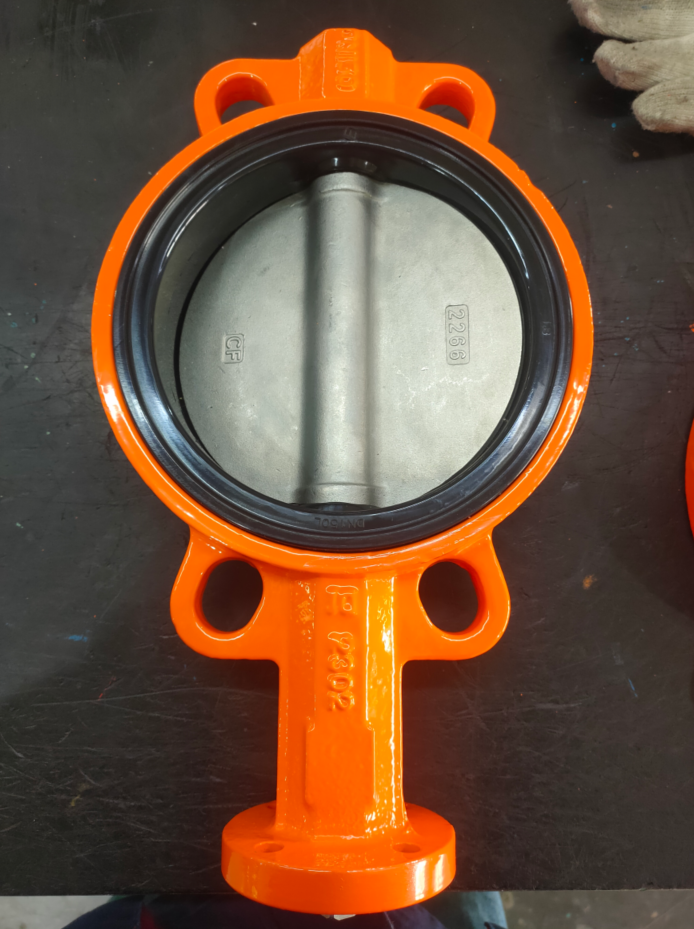

Bare Stem PN16 Wafer type Butterfly Valve

Specifications:

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

------------------------------------------------------------------------------------------

Materials:

Body :Ductile Iron

Disc: Ductile Iron/CF8M

Seal : EPDM

Stem : SS416

-----------------------------------------------------------------------------------------------------------------

Operated:Bare Type

Applicable medium：Water, Oil, Gas

Date Sheet :

 Features:

1.Simple structure: The wafer butterfly valve is composed of a valve body, a valve stem, a valve disc and a sealing component. It has a simple structure and is easy to install and maintain.

 2. Fast opening and closing: The wafer butterfly valve can achieve fast opening and closing operations by rotating the valve disc.It can effectively improve work efficiency.

3. Small fluid resistance: The valve disc of the wafer butterfly valve is reasonably designed, the channel is unobstructed, and the resistance when the fluid passes through is small.

4. Good sealing: The wafer butterfly valve is equipped with high-quality sealing components, which can provide good sealing performance and ensure that the fluid will not leak.

5. Light weight: The valve body of the wafer butterfly valve is made of lightweight materials, which is light in weight and easy to carry and install.

6. Long service life: The wafer butterfly valve is made of corrosion-resistant materials and can operate stably for a long time in harsh working environments.

7. Wide range of applications: The wafer butterfly valve can be used to control the flow of gas, liquid and various corrosive media, and has a wide range of applications.
