Butterfly Valve

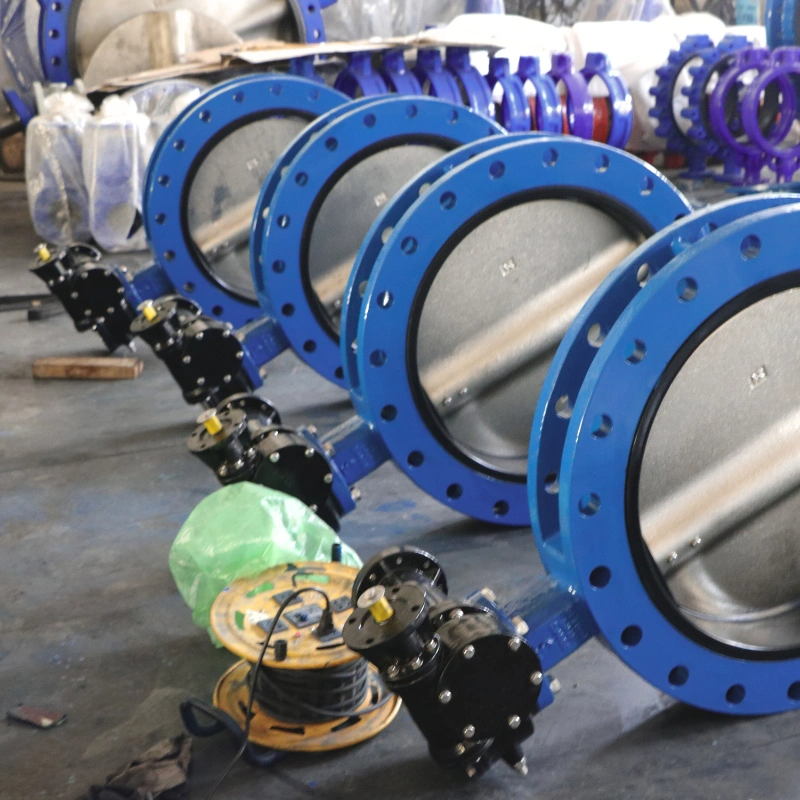

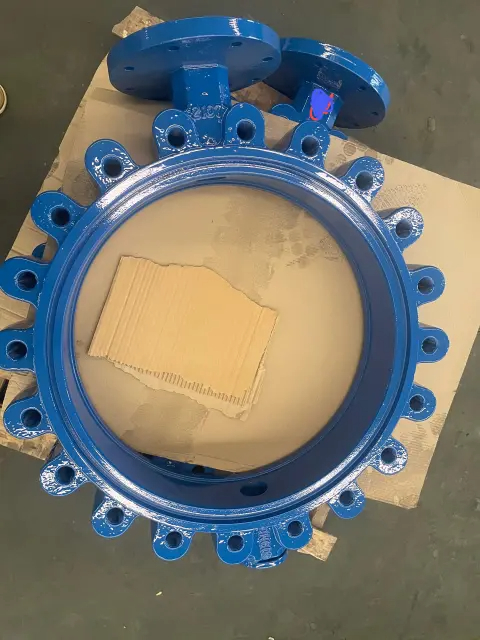

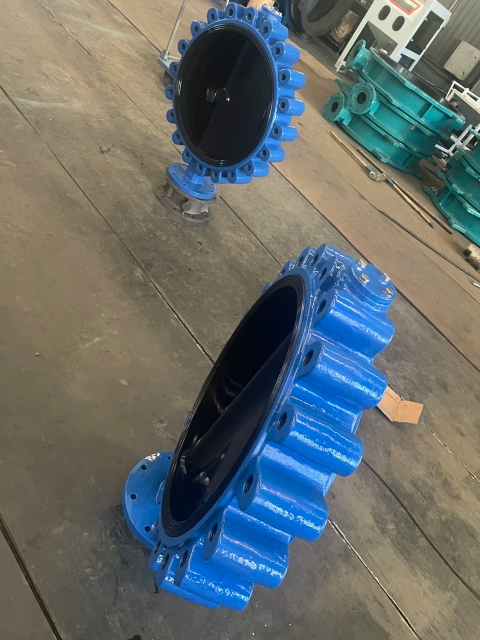

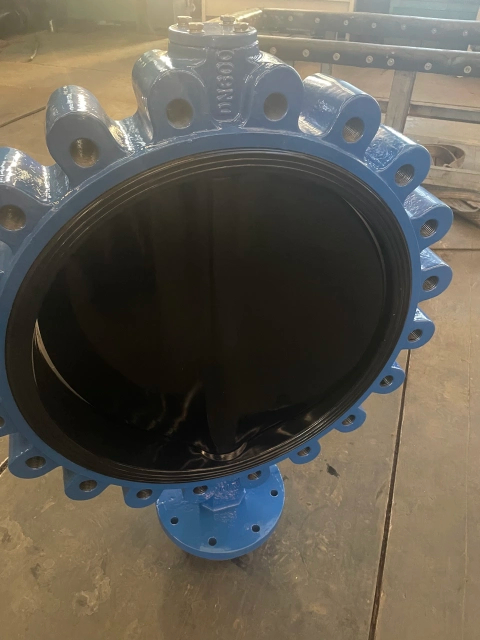

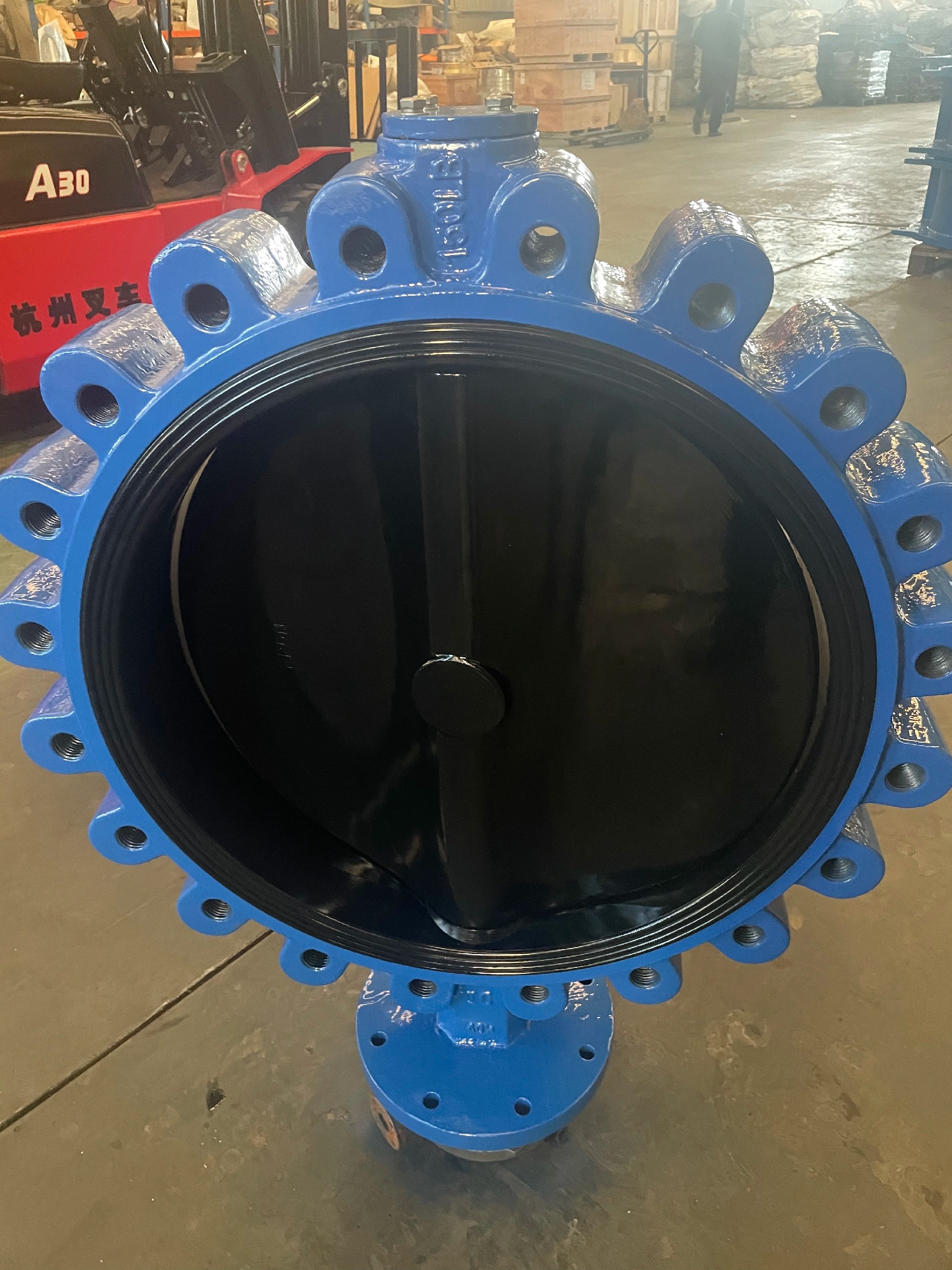

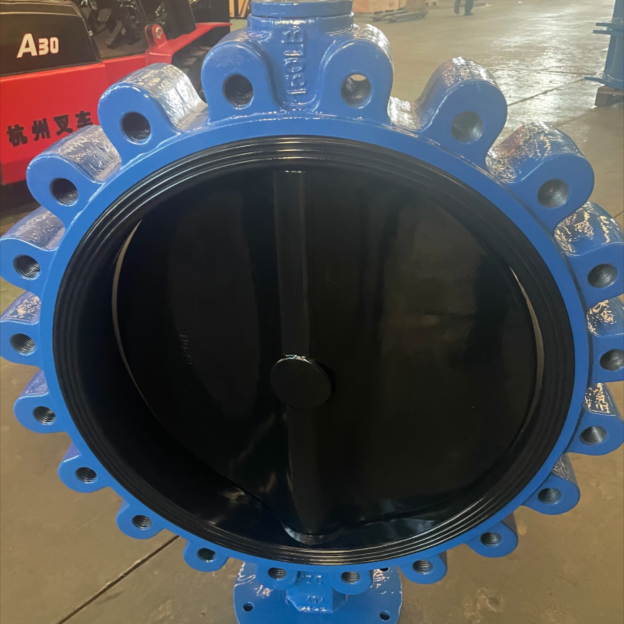

EPDM NBR Coated Disc ANSI 150Lb Soft Seat Lug Type Butterfly Valve

    1. Design and manufacture: EN 593/BS 5155/MSS SP-67.
    2. Flange dimensions: EN 1092-2/BS 4504/ASME B16.1.
    3. Top flange dimensions: ISO 5211.
    4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.
    5. Test and inspection: API 598/EN12266.
    6. Size up to 48".


  • FEEDBACK

Features:

1. Small in size, light in weight, easy installation and maintenance.

2. Simple and compact construction, quick 90 degree on-off operation.

3. Minimized operating torque, energy saving.

4. Flow curve tending to straight line, excellent regulation performance.

5. Long service life, standing the test of tens thousands opening/closing operations.

6. Wide selection of materials, applicable to various medium.

Performance:

Nominal pressue (MPa)

1.0

1.6

Nominal diameter(mm)

50-1000

50-1000

Test pressure

Shell

1.5

2.4

(MPa)

Seal

1.1

1.76

Applicable temperature

150

Applicable medium

Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.

Operating mode

manual, worm gear, pneumatic, electric, etc.

Standard:

Design & Manufacture

Flange Connection

Face to Face Dimension

Test & Inspection

MSS SP-67
API609
EN593

DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E

API609
ISO5752 series 20
BS5155

API 598
