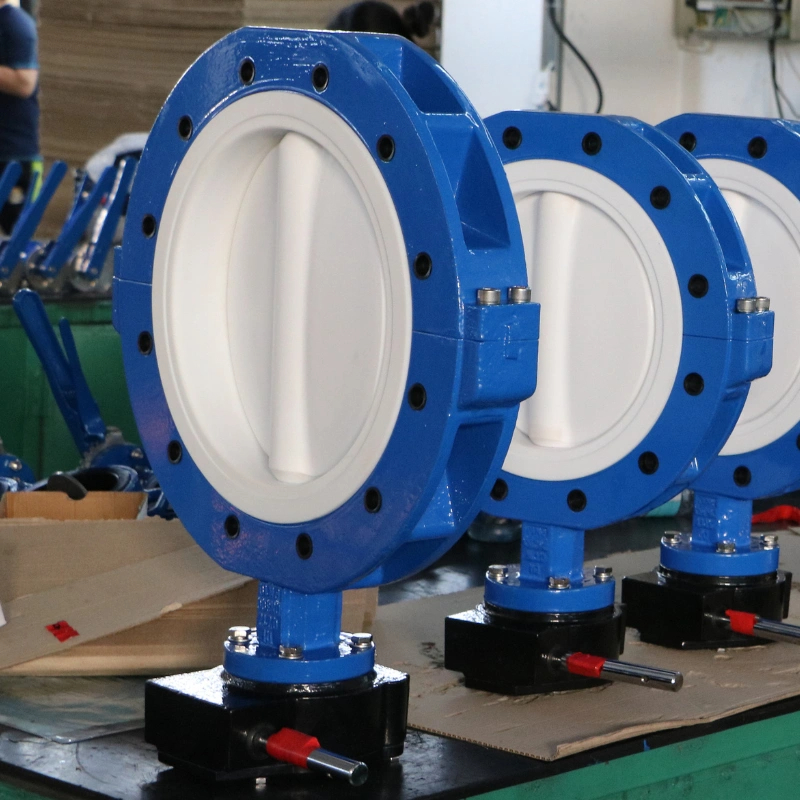

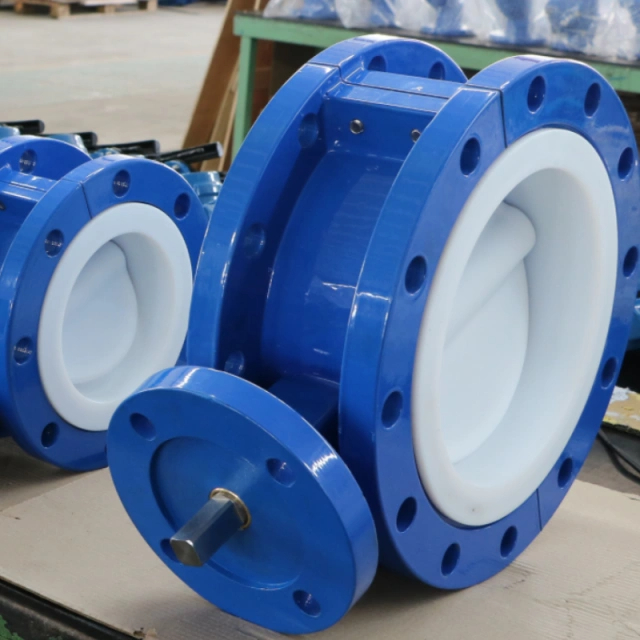

Double Flange Type Butterfly Valve

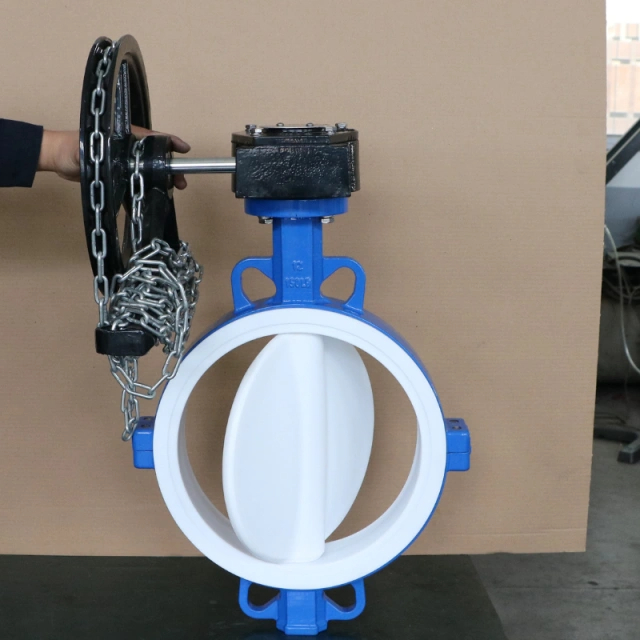

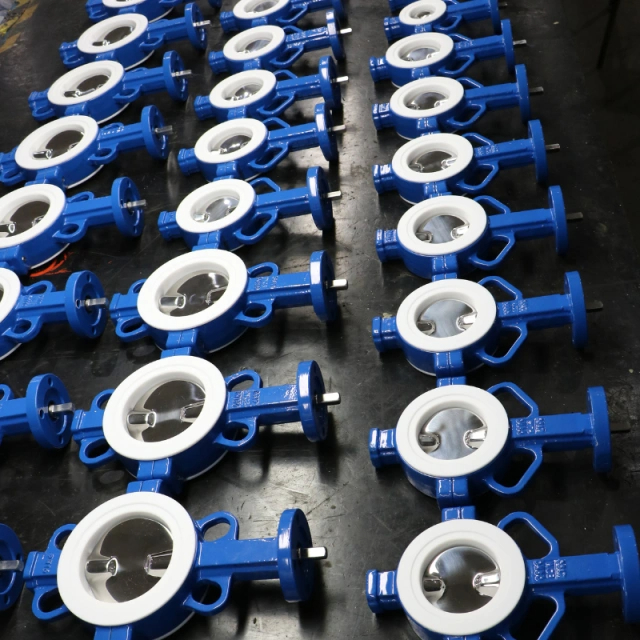

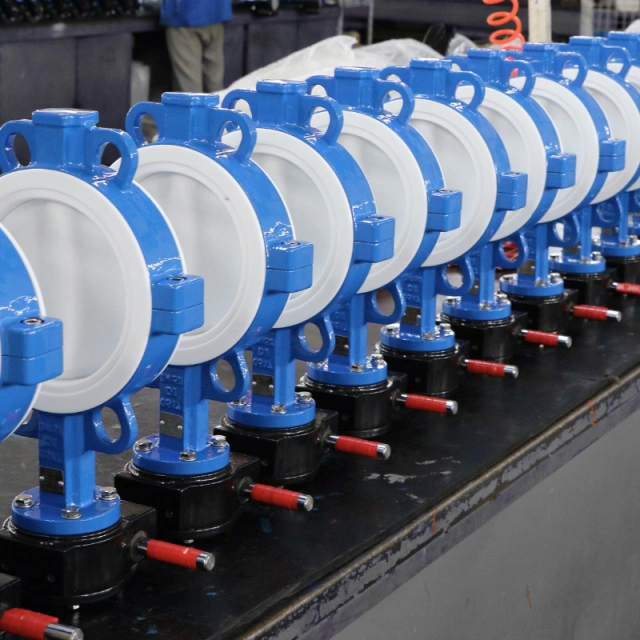

PTFE Lined Butterfly Valve

    1. Design and manufacture: API 609/EN 593/BS 5155.
    2. Flange dimensions: EN 1092-2/BS 4504/ASME B16.1.
    3. Top flange dimensions: ISO 5211.
    4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.
    5. Test and inspection: API 598/EN12266.
    6. Size up to 56".


  • FEEDBACK


 Product Fearues

  • Absolutely Tight Sealing: Ensures leak-proof performance with flow in either direction, providing superior sealing capabilities.

  • Low Operating Torque: The precisely machined valve body and disc contribute to reduced operating torque, making the valve easier to operate and more energy-efficient.

  • Long Service Life & Reliability: The PTFE lining prevents corrosion, extending the valve’s lifespan and enhancing overall reliability, even in harsh or corrosive environments.

  • Disassembly & Recycling: The valve can be disassembled for maintenance or repair, and the materials are recyclable, supporting sustainable practices in industrial settings.



 Working/Testing Pressure




        Size                  DN         40mm-300mm       350mm-1200mm
                 Inch           1-1/2''-12''             14''-24''
                                   Working
                                  10bar
          Testing             Shell
                                   15bar
             Seal
                                   11bar


 Working Temperature

     Seat Material            EPDM            NBR         FKM           PTFE
     Temperature     -10℃ to 120℃      -10℃ to 80℃     -15℃ to 200℃    -25℃ to 180℃


Material Specification

           Part         Material
          Body        Ductile Iron  CF8 CF8M  CF3M Duplex Steel  Al-Bronze
           Disc  WCB  CF8 CF8M CF3M   Duplex Steel /PTFE
           Shaft                          SS431  SS316 17-4PH
           Seat                                           PTFE/PFA
       Bushing                                        Stainless Steel Ring
           Lever                      Malleable Iron         Carbon Steel    Aluminum    SS316
        Gear Box                                   Ductile Iron         Aluminum    SS316



 Corrosion Protection

Epoxy Resin Powder Spray,The minimum thickness is not less than 300 microns
