Butterfly Valve

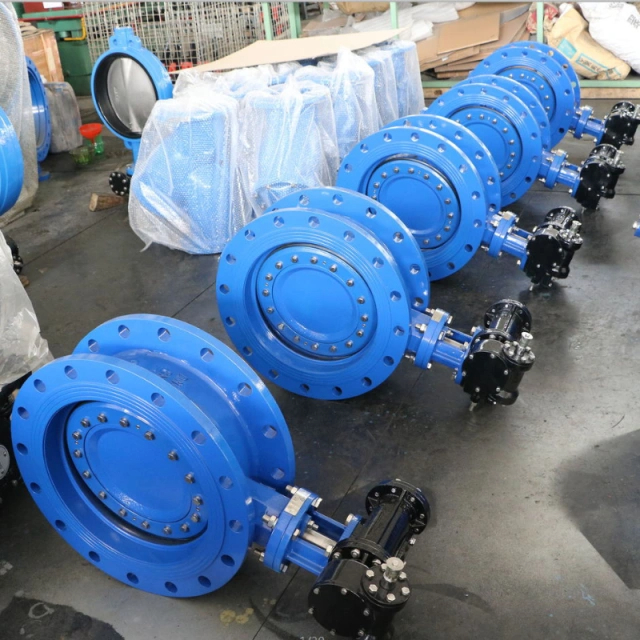

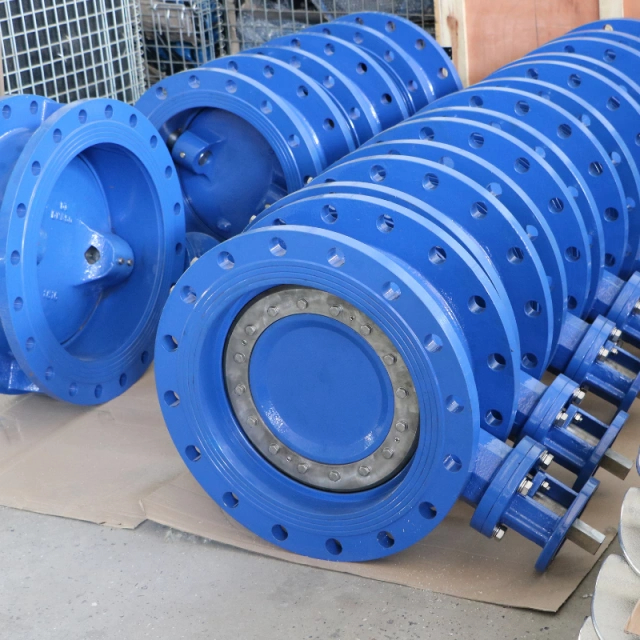

Eccentric Double Falnge Type Butterfly Valve

    1. Design and manufacture: EN 593/BS 5155.
    2. Flange dimensions: EN 1092-2/ASME B16.1.
    3. Top flange dimensions: ISO 5211.
    4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.
    5. Test and inspection: API 598/EN12266.
    6. Size up to 120".

  • FEEDBACK

Specifications:

Size: DN50-DN2000

Pressure: PN10/16/25/40 Class150/300

------------------------------------------------------------------------------------------

Materials:

Body : WCB

Disc: WCB

Seal : WCB+PTFE

Stem : SS410

------------------------------------------------------------------------------------------

Operated:Electric Type

 Applicable medium:Water, Oil, Gas

------------------------------------------------------------------------------------------

Double eccentric butterfly valve:
On the basis of the single eccentric butterfly valve, the most widely used double eccentric butterfly valve is further improved and formed. Its structural feature is that the shaft center of the valve stem deviates from the center of the disc and the center of the body. The effect of double eccentricity enables the disc to break away from the valve seat immediately after the valve is opened, which greatly eliminates unnecessary excessive extrusion and scratching between the disc and the valve seat, reduces the opening resistance, reduces wear, and improves the Seat life.


Product Name

Double Eccentric Butterfly Valve

Size (mm)

50-2000mm

Flange connection

BS4504 PN10, PN16, PN25 and PN40.
DIN2501 PN10, PN16, PN25 and PN40.
ANSI B16.5, 16.47 / 150LB, 300LB
JIS 10K, 16K & 20K / 30K / 40K

Face to Face Dimensions

API609,BS5155,ISO5752,ANSI16.34


Material


Body

WCB; CF8; CF8M; Al-bronze;STL

Disc

WCB; CF8; CF8M; Al-bronze;STL

Stem

SS410/420/416; Monel

Seat

CF8; CF8M;STL+Flexible Graphite


Packing

Flexible Graphite;PTFE

Operating

Wormgear; Electric; Pneumatic ;

Application:
1.Nuclear power Plants Petrochemical plants
2.Petroleum refinery Fossil power plants
3.Fire safe line Exhaust gas line & Steam line
4.Cryogenic services
