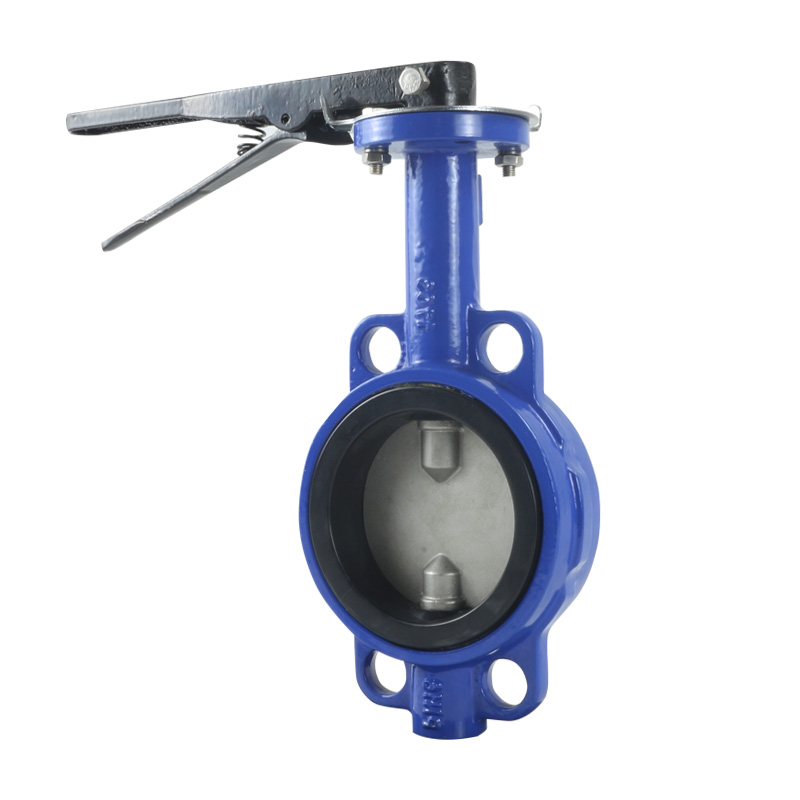

Wafer Type Butterfly Valve

Specification:

Ductile Iron Wafer End Butterfly Valve

Specifications:

Size: DN50-DN1200

Pressure: PN10/16, Class150,JIS6K/10K

------------------------------------------------------------------------------------------

Materials:

Body : Cast Iron

Disc: Ductile Iron

Seal : EPDM

Stem : SS410

------------------------------------------------------------------------------------------

Operated:Manual Type -Stamping Lever

Applicable medium：Water, Oil, Gas

Features：

1.Simple structure: The wafer butterfly valve is composed of a valve body, a valve stem, a valve disc and a sealing component. It has a simple structure and is easy to install and maintain.

 2. Fast opening and closing: The wafer butterfly valve can achieve fast opening and closing operations by rotating the valve disc. The opening and closing time is short, which can effectively improve work efficiency.

3. Small fluid resistance: The valve disc of the wafer butterfly valve is reasonably designed, the channel is unobstructed, and the resistance when the fluid passes through is small, which can effectively reduce energy consumption.

 4. Good sealing: The wafer butterfly valve is equipped with high-quality sealing components, which can provide good sealing performance and ensure that the fluid will not leak.

5. Light weight: The valve body of the wafer butterfly valve is made of lightweight materials, which is light in weight and easy to carry and install.

6. Long service life: The wafer butterfly valve is made of corrosion-resistant materials and can operate stably for a long time in harsh working environments.

7. Wide range of applications: The wafer butterfly valve can be used to control the flow of gas, liquid and various corrosive media, and has a wide range of applications.
